HXE-24H Copper annealing and tinning machine /high quality

I. Main technical parameter

1.Size 0.1mm-0.6mm bare copper wire annealing and tinning

2.Speed 300m/min Max

3.Pay-off bobbin customize 300mm

4.Number of wire 24 wires

5.Annealing soften furnace heat pipe Electric capacity 36kw

6.Dry oven Electric capacity 9kw

7.Electric tinning oven Electric capacity 11kw

8.Capacity of tinning oven slot 150kg

9.Single traction motor induction motor with Inverter control

10.Spooling tension 1.5-1.8N •m

11.Spooling type Monolayer type, 6 heads*2sides*2spoolers

12.Applicable bobbin PT-4 ~ PT-15

13.Traversing type independently with independent motors with Inverter to control speed

14.Traversing motor 200w

15.Power source according to your request

16.Cooling water capacity 20L/min

II. Main compositions

1.Pay off 1 set

2.Annealing soften furnace 1 set

3.Water sink and Dry oven 1 set

4.Tining oven 1 set

5.Single traction motor machine 1 set

6.Six heads*2sides*2spoolers 1 sets

7.Electric cabinet 1 set

Photos of finished machine

Certification

Exhibition in Shanghai city

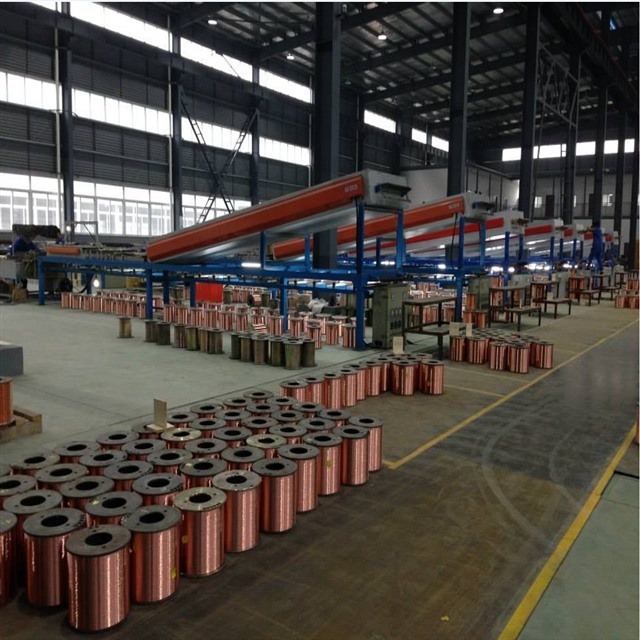

photos about customers

Advantage and after-self service

A:Advantage

(1).HENGXIE has some world famous parts suppliers, has special lubrication system for the gears and bearing.

(2).Body and other key components and parts are produced by our own factory , quality is reliable.

(3).Our company’s developing process in more than 10 years.

B:After-self service

Our company for all machine product, since the shipment date, our company free after sale maintenance service guarantee period is:

(1) 1 year for mechanical part.

(2) 6 month for electrical part.

Kindly please contact us to get more services and more information of copper wire drawing machine

Looking forward to cooperating with you!
